Crystallization Plates

Sitting Drop     In-Situ / Hanging Drop     Microbatch-Under-Oil        Crystal Clear Strips

Product

Product Code


Vapor Batch Plates

96 Well plate for microbatch or vapor diffusion experiments. Reservoirs around the edge can be filled with a reservoir solution for vapor diffusion. They also avoid oil spills in microbatch experiments. Wells are individually labeled.







Sold in two versions:

Hydrophobic - reduces nucleation and crystals sticking.

Hydrophilic (plasma treated) – recommended for small volume screening experiments.



Each plate :


Each plate :

Contact us for bulk discount rates



VBATCH 1/1 PHO




VBATCH 2/1 PHI

SWISSCI 'MRC' 2-Drop Crystallization Plates

SBS format with 96 reservoirs, two drops per reservoir.



Wide partition walls for good sealing
Microscopic identifiers within wells

MRC 2-Drop Plate

Available in:
- Polystyrene [-TPS]
- UV Transmissible Polymer [-TUVP]
- UVXPO UV Compatible, Zero Background Cross-Polarized [-TUVX]

- Polystyrene
- UV Transmissible
- UVXPO (UV Compatible, Zero Background Cross-Polarized)

Call for price
Call for price
Call for price

SW2T - PS/1
SW2T - UVP/1
SW2T - UVX/1

Contact us for a quotation

SWISSCI 3-Drop Crystallization Plates

SBS format with 96 reservoirs, three drops per reservoir.

3-Well Plate

Wide partition walls for good sealing
Microscopic identifiers within wells

MRC3-Drop photo

Available in Polystyrene [-TPS] and
UV Transmissible Polymer [-TUVP]

- Polystyrene
- UV Transmissible

Call for price
Call for price

SW3T - PS/1
SW3T - UVP/1

Contact us for a quotation

SWISSCI Maxi Plates for Optimization

SBS footprint with 48 large reservoirs, one large drop position per reservoir, specially designed for optimization.

3-Well Plate

Wide partition walls for good sealing
Microscopic identifiers for each drop.

SwissCI Maxi

Available in Polystyrene [-TPS] and
UV Transmissible Polymer [-TUVP]

- Polystyrene
- UV Transmissible

Call for price
Call for price

SWMX - PS/1
SWMX - UVP/1

Contact us for a quotation

MiTeGen In Situ-1 Plates
For 96 well hanging drop and in situ data collection

96 well SBS format plate. The COC film back offers excellent transparency for X-ray or UV light. The micro-ledge and micro-channel design allows the plate to be flipped without spillage from the reservoir. The inhibition of cross-contamination from reservoir to drop allows the In Situ-1 plates to be used for hanging drop as well as sitting drop.

MiTeGen_In_Situ

Hanging drop setup with the In Situ-1 plate.

MiTeGen_In_Situ_1

MiTeGen In Situ-1 Plates

Each plate :

MTGEN-Situ1/1


Crystal Clear Strips

CrystalClear 'Duo' strips with two drop positions per reservoir

SBS spacing in both directions, suitable for use with all dispensing robots and in all observation systems.



Customers in the USA can also obtain CrystalClears from Hampton Research

Miniature wells for Vapor Diffusion with two depressions on the shelf for samples. Strips are sealed with tape.

SBS Plate with 12 strips

Download the definition drawing for CrystalClear Duo




Each plate :

Contact us for bulk discount rates






CCLEAR-DUO/1

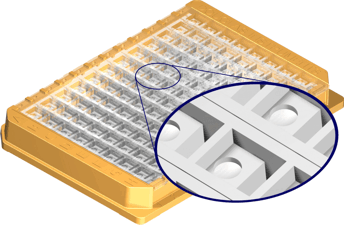

CrystalClear 'D' strips with depressions

SBS spacing in long direction only, suitable for use with Oryx and other single head or variable spacing robots and in all observation systems.

Download a specification drawing of CC_D here

Customers in the USA can also obtain strips from Hampton Research

Miniature wells for Vapor Diffusion with depressions on the shelf for samples. Strips are sealed with tape.

SBS Plate with 12 strips




Each plate :

Contact us for bulk discount rates






CCLEAR-D/1

CrystalClear 'P' strips with platforms

SBS spacing in long direction only, suitable for use with Oryx and other single head or variable spacing robots and in all observation systems.

Download a specification drawing of CC_P here

Customers in the USA can also obtain strips from Hampton Research

Miniature wells for Vapor Diffusion with platforms on the shelf for samples. Strips are sealed with tape.

SBS Plate with 12 strips






Each plate :

Contact us for bulk discount rates






CCLEAR-P/1

XtalQuest 48-2 Well Crystallization Plates

Suitable for manual or automatic work48 reservoirs, each with 2 drop positions
standard 9mm pitch (drop - reservoir - drop in long direction)

CrystalQuest Plate Photo

Plates with lids

Each plate :

XTALQUEST 48-2
