Automatic Protein Crystallization in an Anaerobic Environment
  • Bret Dillard


  • B.C. Wang Lab
  • University of Georgia


  • 07/21/06
2
Basis for Anaerobic Crystallization
  • Many proteins exist in an anaerobic environment
    • Lose cofactors such as iron-sulfur clusters in oxygen environment
    • Need to reproduce redox state of cofactors such as FAD+ and NAD+
  • Many crystallographers need to see different redox states of protein conformations for biological studies
3
Many Ways to Solve This Problem
  • Anaerobic experiments (in a chamber)
    • Sitting drop experiments
    • Hanging drop experiments
    • Capillary diffusion experiments
  • Or use Douglas robot in Bactron X chamber


4
Differences Between Techniques
  • Amount of Protein
    • Hanging drop, sitting drop, and capillary techniques use copious amounts of protein and crystallizing agent
    • Microbatch diffusion uses 300nl of protein per condition (in this experiment)
    • Microbatch allows use of same mother liquor for many experiments

5
The Chamber

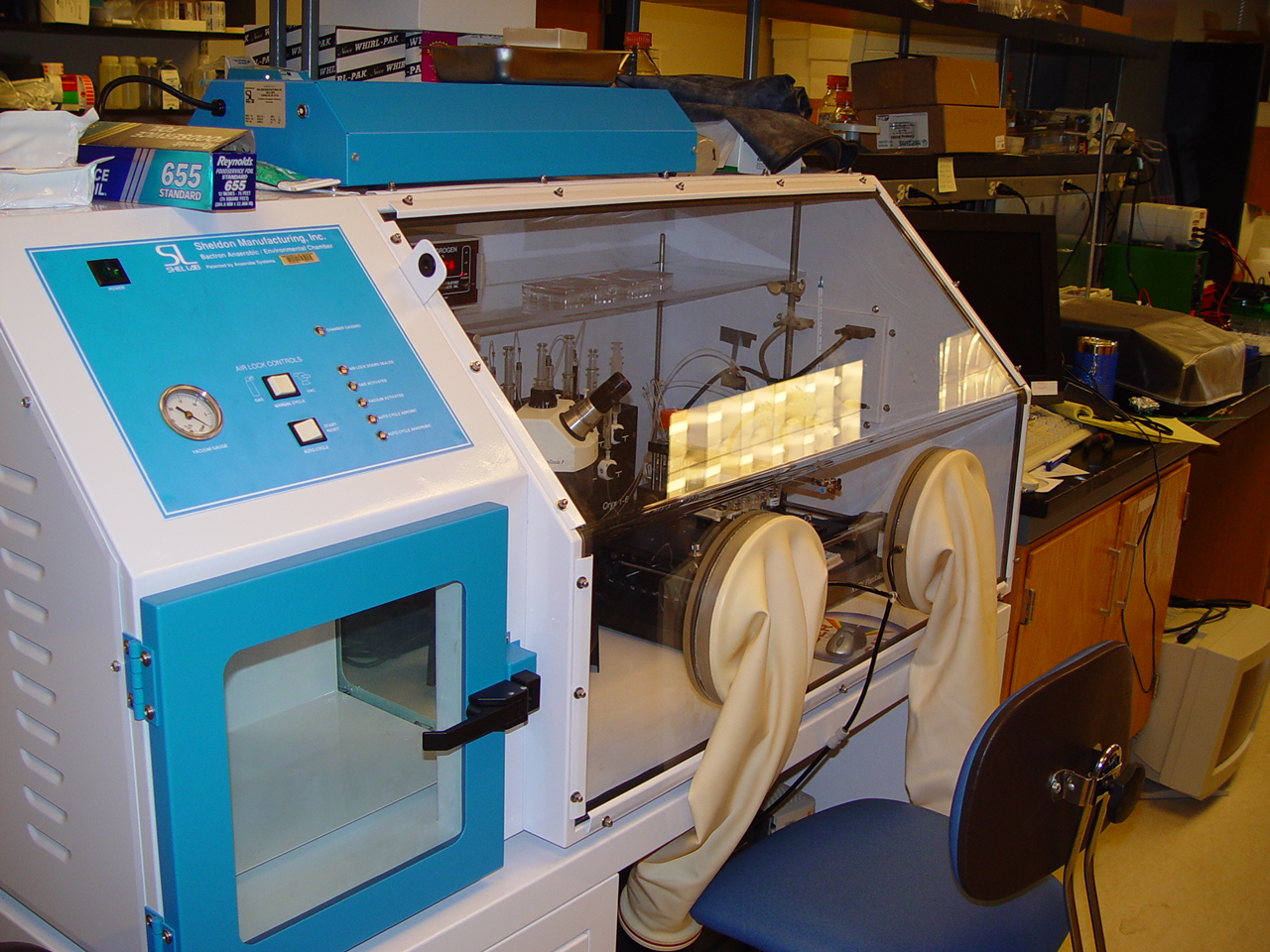

  • Using Sheldon Manufacturing Bactron X chamber with custom wall joint one can run robot with computer outside the chamber
6
Connections and Oxygen Detection

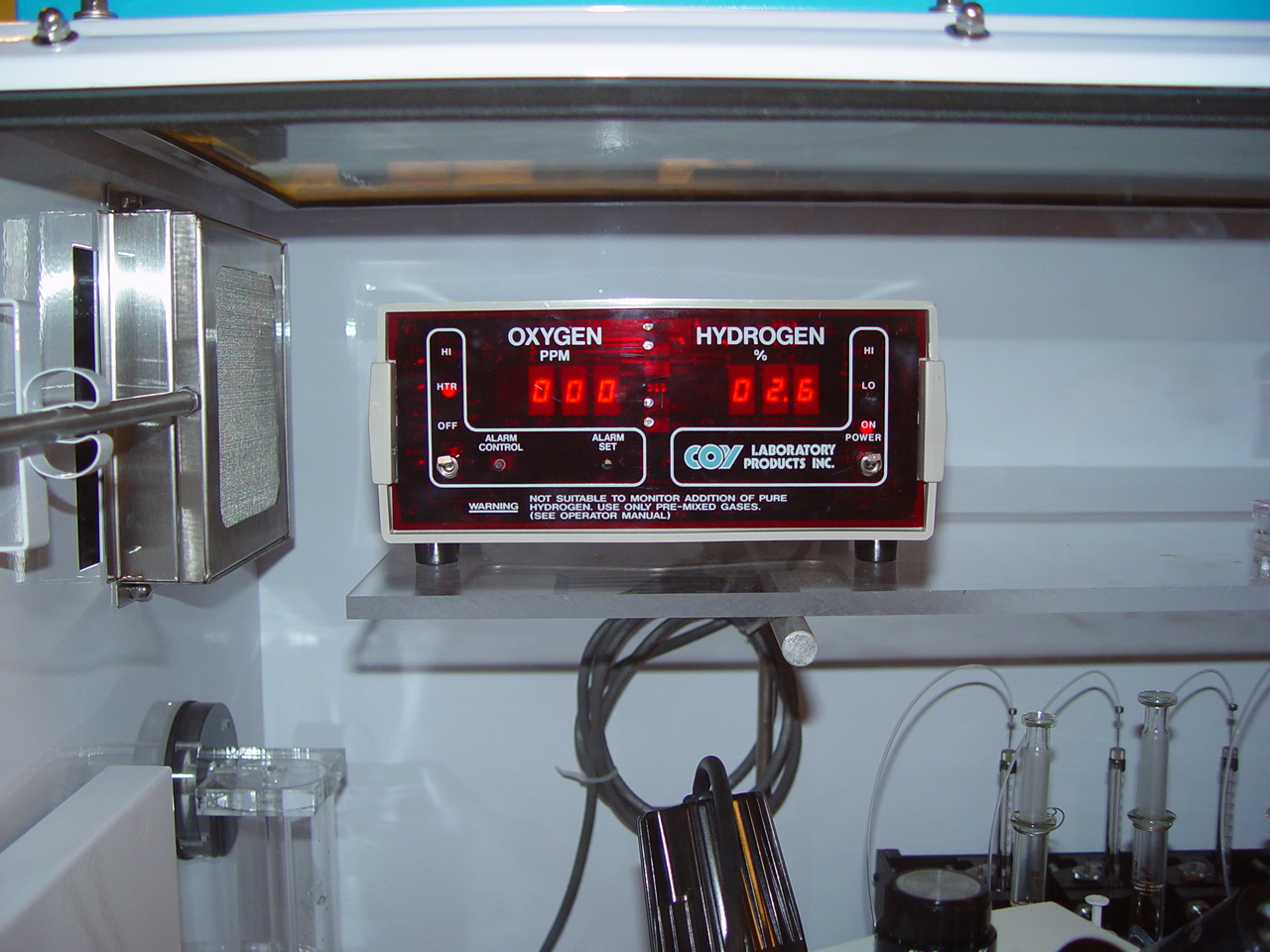

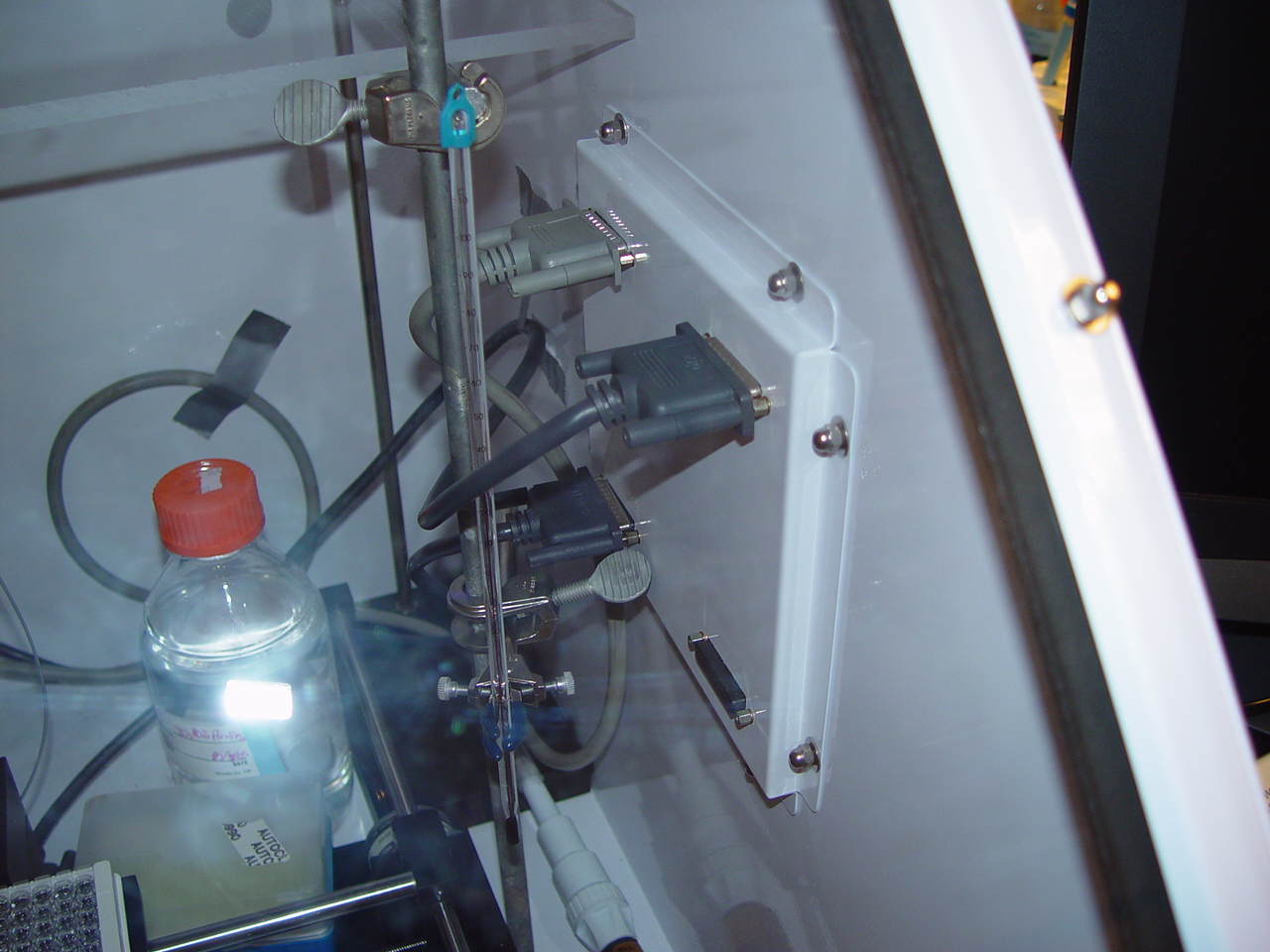

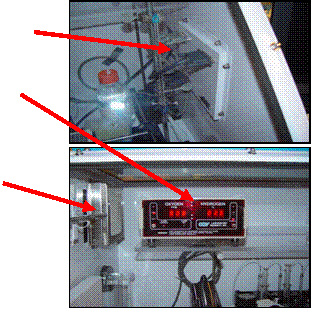

  • 24 parallel ports allow computer to run robot from outside the chamber
  • Using 5% hydrogen / 95% nitrogen gas mix we are allowed to detect oxygen levels inside the chamber
  • The same gas mix also allows us to use palladium catalyst to remove oxygen at an accelerated rate
7

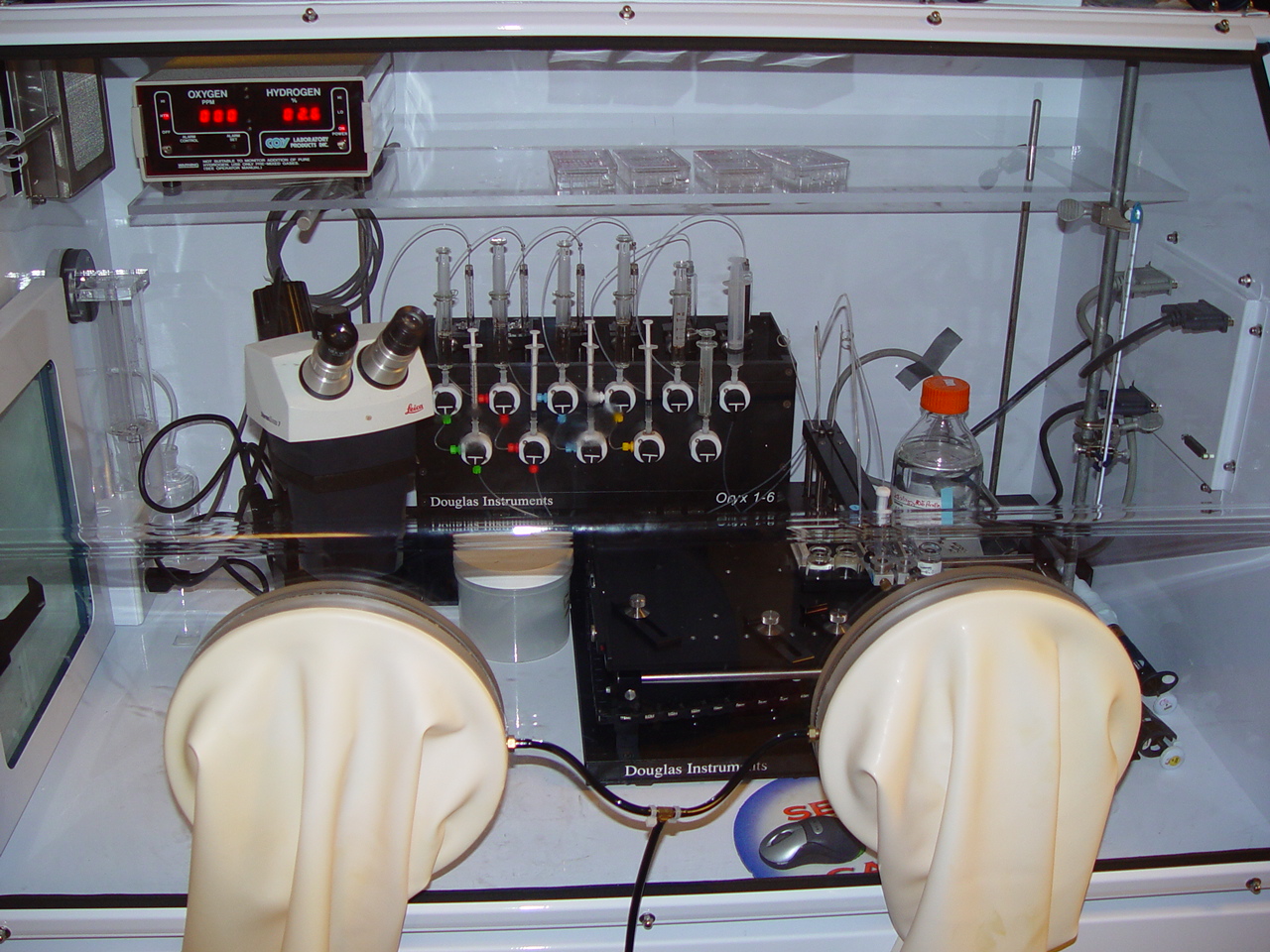

The Overall Setup
8
Crystallization of Oxygen Sensitive Protein
  • We have purified and crystallized four proteins that are not stable in an oxygen environment
  • The structure of one of these proteins (rubrerythrin) has been solved using anaerobic techniques as of this moment.
    • This protein was previously solved with zinc being coordinated in an aerobic environment
    • The native protein contains iron but is unstable in oxygen
    • We now have the native iron form of this oxygen labile protein through using this system
9

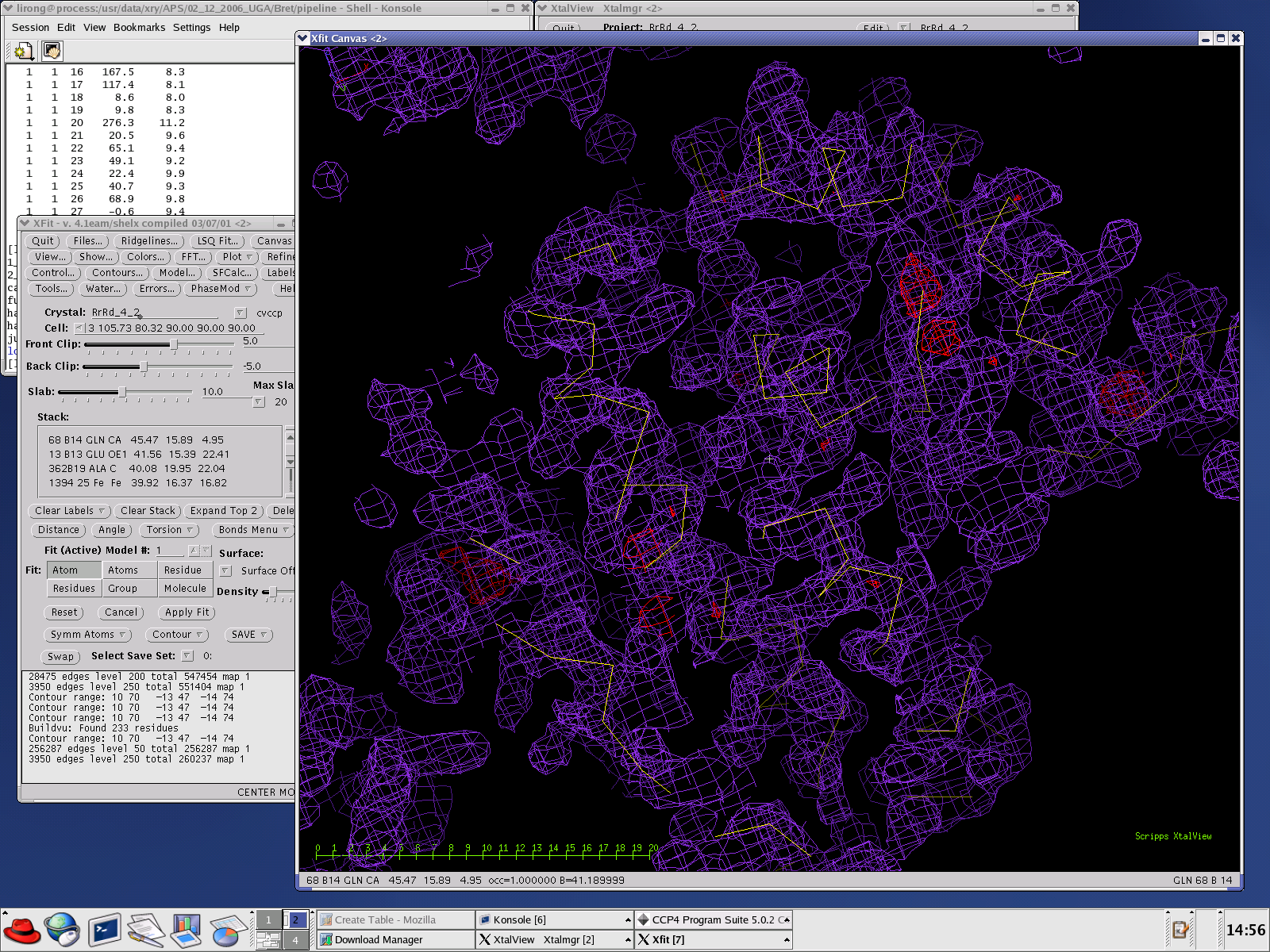

Iron Form of Rubrerythrin
10
Advantages of Method
  • Use of less protein
    • Sitting drop, hanging drop, and capillary methods use large volumes of protein
    • Microbatch uses only 300nl of protein per condition
  • Less time involved in experiment
    • Sitting drop, hanging drop, and capillary methods require intensive attention per experiment
    • Microbatch requires only initial setup and the robot performs the experiment
