Microtips for Oryx robots

All Oryx systems use multi-bore dispensing tips (Microtips), which have several independent channels to dispense small volumes.

At the end of e.g. a 3-bore tip there are three holes. Each channel dispenses a different solution.

The Microtips are re-usable and can be washed between experiments with Hellmanex III 1% or NaOH 0.1 M.

For a quotation please email info@douglas.co.uk or click here to contact us

2-Bore Microtip

MTIP2

  • Screening with 2 ingredients
  • For drops less than 100 + 100 nL

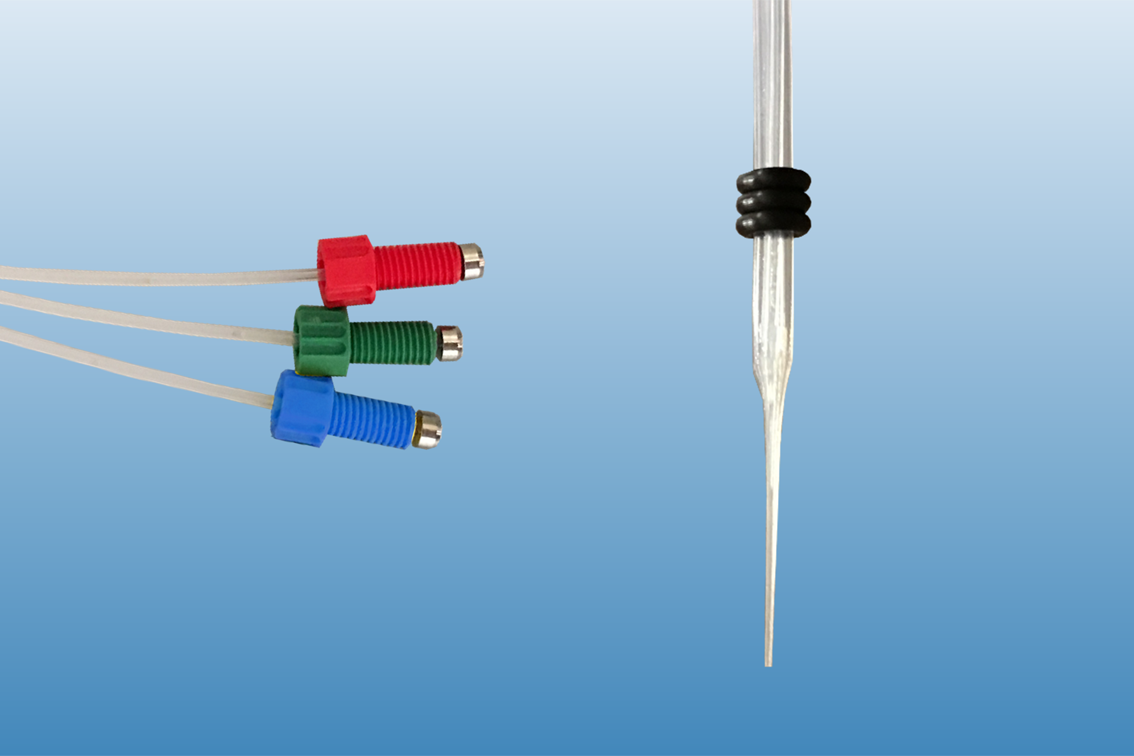

  • 3-Bore Microtip

    MTIP3

  • Screening with up to 3 ingredients
  • Minimum drop size 100 + 100 nL

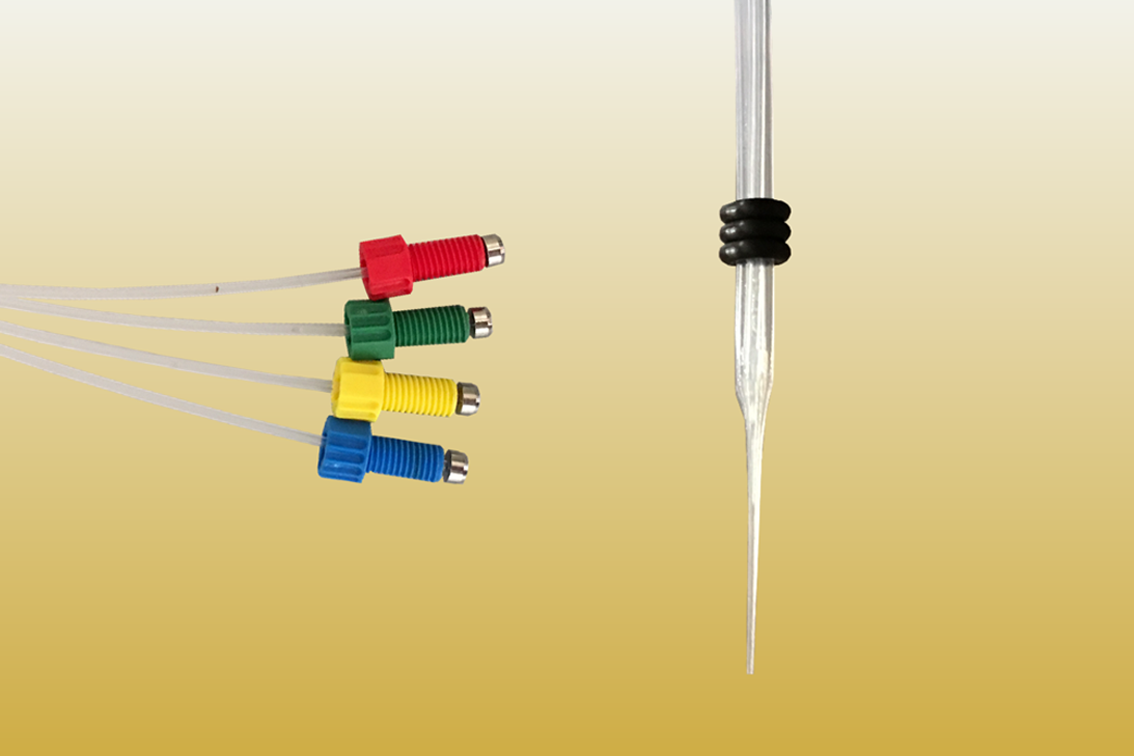

  • 4-Bore Microtip

    MTIP4

  • Screening with up to 4 ingredients
  • Minimum drop size 200 + 200 nL

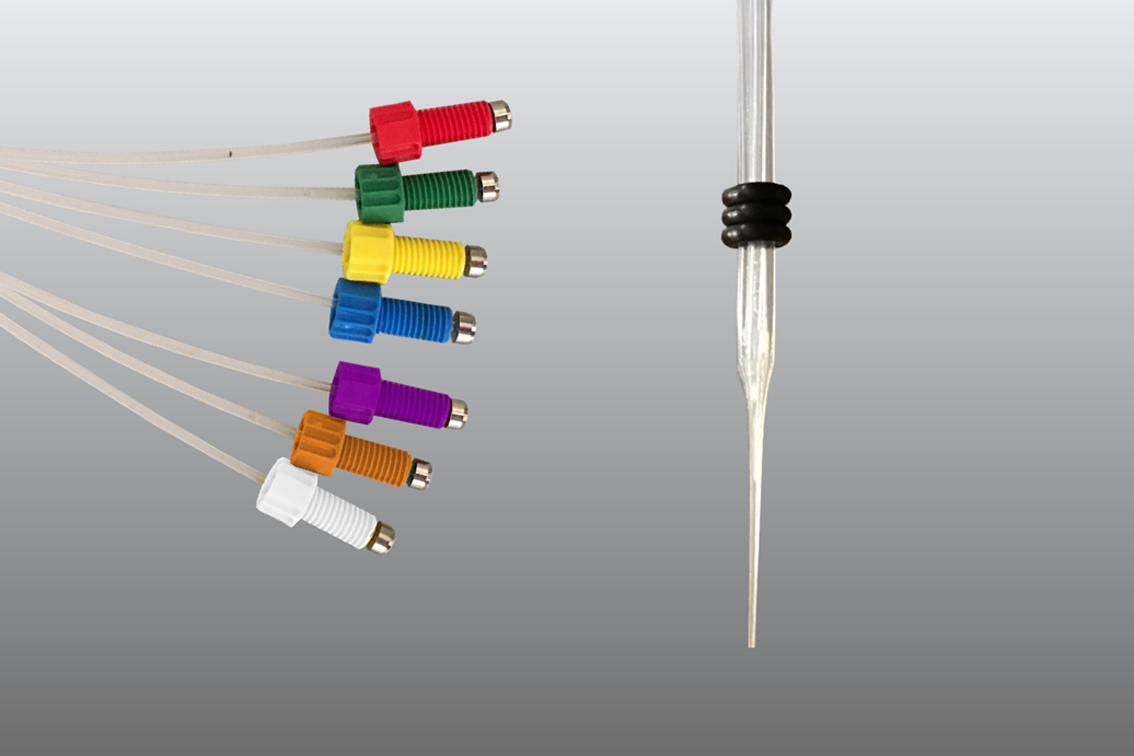

  • 7-Bore Microtip

    MTIP7

  • Optimization with up to 7 ingredients
  • Minimum drop size 600 nL
  • Oryx8 only




  • Microtips -
    for dispensing optimization experiments

      7-bore (Oryx8 only)
      5-bore (Oryx6 and Oryx8)

    Each Tip :
    Each Tip :


    MTIP7
    MTIP5-L/1




    Microtips -
     for dispensing screening experiments

         4-bore (OryxNano and Oryx8)
         3-bore Fine
         2-bore Fine
    (recommended for drops < 0.2
    ┬Ál)
         2-bore Medium
         2-bore Large

    Each Tip :
    Each Tip :
    Each Tip :
    Each Tip :
    Each Tip :

    MTIP4
    MTIP3
    MTIP2-L/3
    MTIP2-L/1
    MTIP2-L/2
